Located on 8.5 centrally located acres in Paducah, KY, Precision Machine houses 30,000 sq. ft. under roof to include a 27,000 sq. ft. Mechanic and Machine Shop and a 3,000 sq. ft. Fabrication and Weld Shop. Both shops feature stat-of-the-art equipment operated by the best craftsmen in the business.

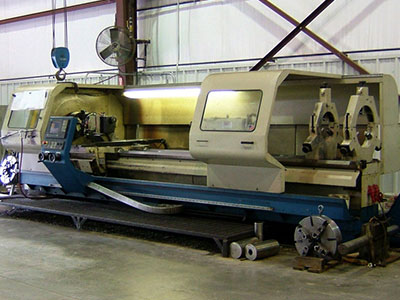

CNC Turning Center

Machine Shop Capabilities

  • CNC Milling……….. 84” x 30” x 30”
    • Hurco VMX 84
    • Hurco VMX 64
    • Hurco VM30
  • CNC Turning…………30” diameter (19-1/4” over carriage) x   150” long
    • Haco-Fat Tur800MN
    • Haco-Fat Tur690
    • Willis 2060 ENC
  • Manual Milling……..130” long x  60” wide  x  70” tall
  • Manual Turning………..42” diameter X  400” long
  • Vertical Turret Lathe………140” diameter X  72” tall
  • Sawing Capacity…………21” diameter
  • Overhead Crane Capacity……….20 ton
  • Drive line repair (motors, gear drives)

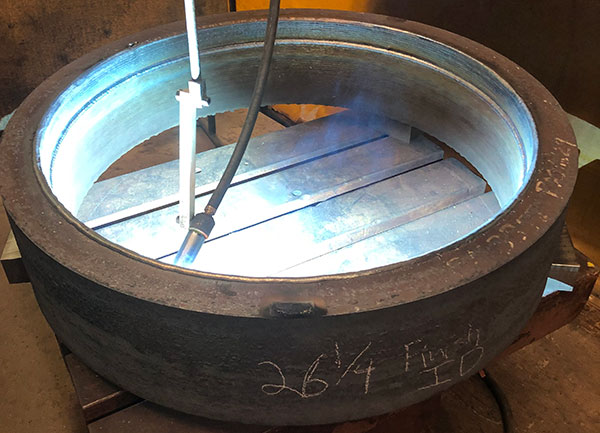

Weld Shop Capabilities

Weld Shop Capabilities

  • AWS Certifications: D1.1, D1.5, D1.6, D14.1
  • ASME Certifications: Section IX
  • Welding Lathes:
    • Cincinnati Lathe…28” diameter x 32’ length equipped for submerged arc and MIG
    • Profit Master Lathe…8” diameter x 5’ length equipped for MIG and TIG
  • Climax Auto Bore Welders BW3000
    • Welding I.D from 1.5” – 56”
    • Welding O.D from 1.5” – 36”
    • Face welding up to 20” diameter
  • Uni Hydro Iron Worker: 125 tons of hydraulic shearing, punching and notching capacity
  • Overhead Crane Capacity……….10 ton
  • Welding Capabilities: GMAW (MIG), FCAW (Flux Cored), GMAW-P (Pulsed MIG), GTAW (TIG), SMAW (Stick), SAW (Submerged Arc)

Our goal is to maintain a safe working environment while providing customers with the highest quality finished product. Our team holds multiple AWS and ASME certifications through different processes used both in-house and in the field. Team members have multiple skillsets that range from welding and fabrication, to mechanical and millwright applications. We specialize in the un-ordinary, working with exotic metals such as (stainless, aluminum bronze, medium to high carbon steels, aluminum etc.) Job capabilities range from small hand held pieces to large scale multi part assemblies up to 40,000 lbs.

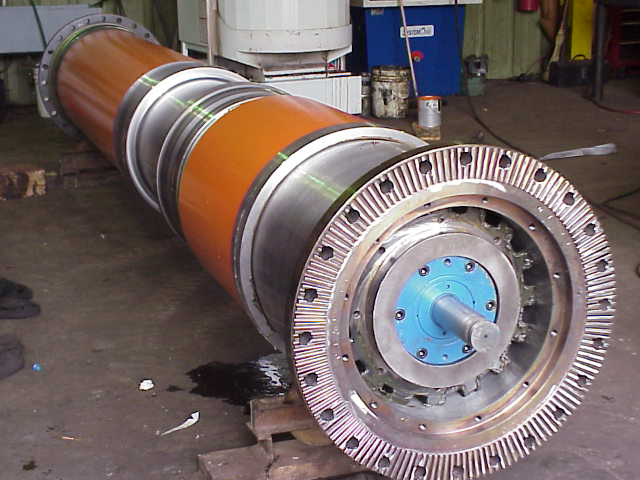

Nucor Spindle
Gearbox Assembly

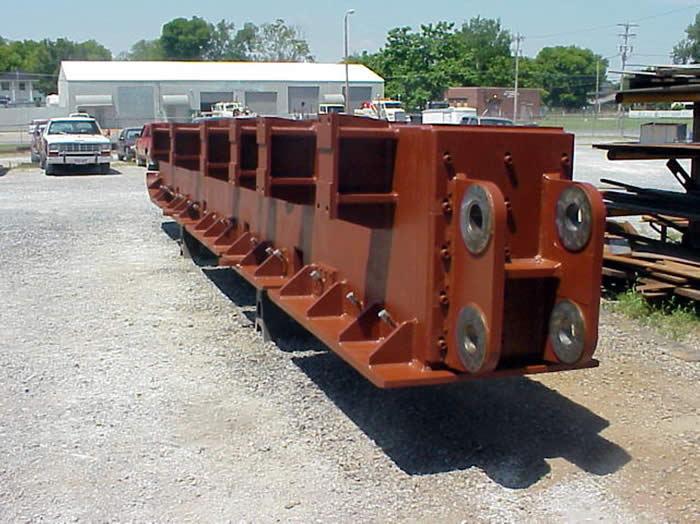

PMI Housing
Contact us to let us know how we can help.
